Baja Designs – S8 LED Light Bar

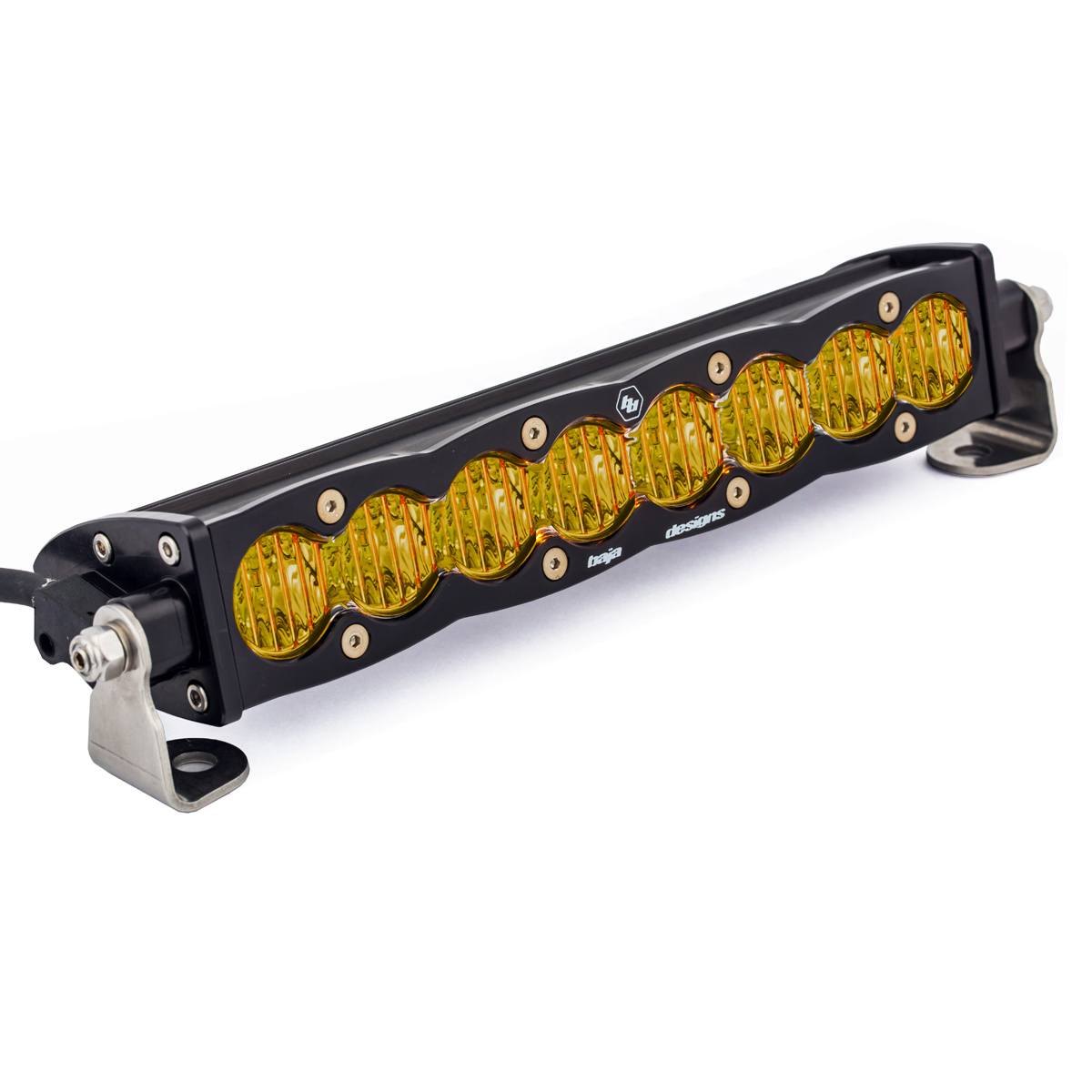

10″ Light Bar
Lumens: 6,328 Utilizing 8 Cree LEDs
Wattage/Amps: 56W/4.06A
Dimensions/Weight: 10″ x 3″ x 1.6″/2.4 lbs

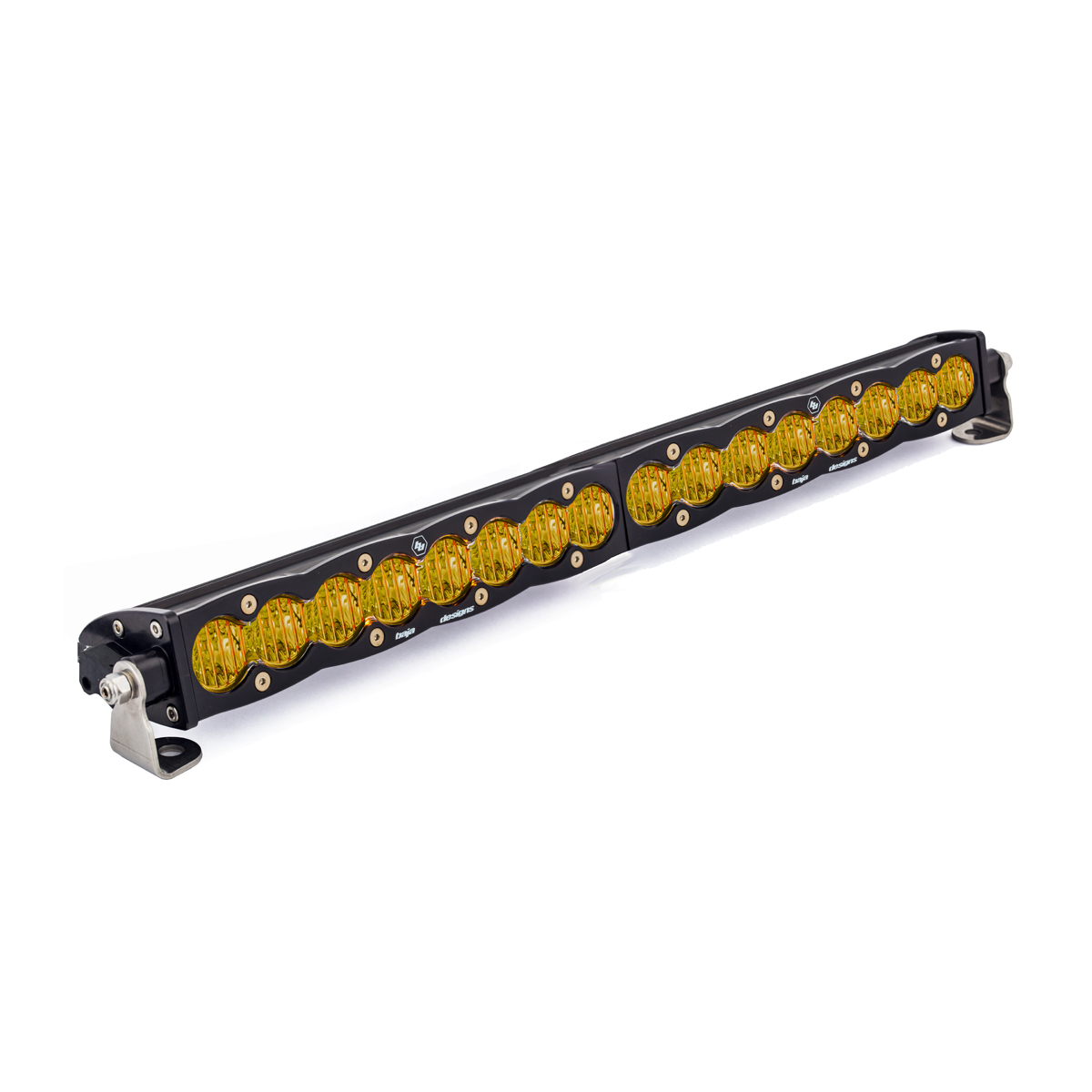

20″ Light Bar
Lumens: 12,656 Utilizing 16 Cree LEDs
Wattage/Amps: 112W/8.12A
Dimensions/Weight: 20″ x 3″ x 1.6″/4.5 lbs
30″ Light Bar
Lumens: 18,984 Utilizing 24 Cree LEDs
Wattage/Amps: 168W/12.17A
Dimensions/Weight: 30″ x 3″ x 1.6″/6.5 lbs
40″ Light Bar
Lumens: 25,312 Utilizing 32 Cree LEDs
Wattage/Amps: 224W/16.23A
Dimensions/Weight: 40″ x 3″ x 1.6″/8.65 lbs

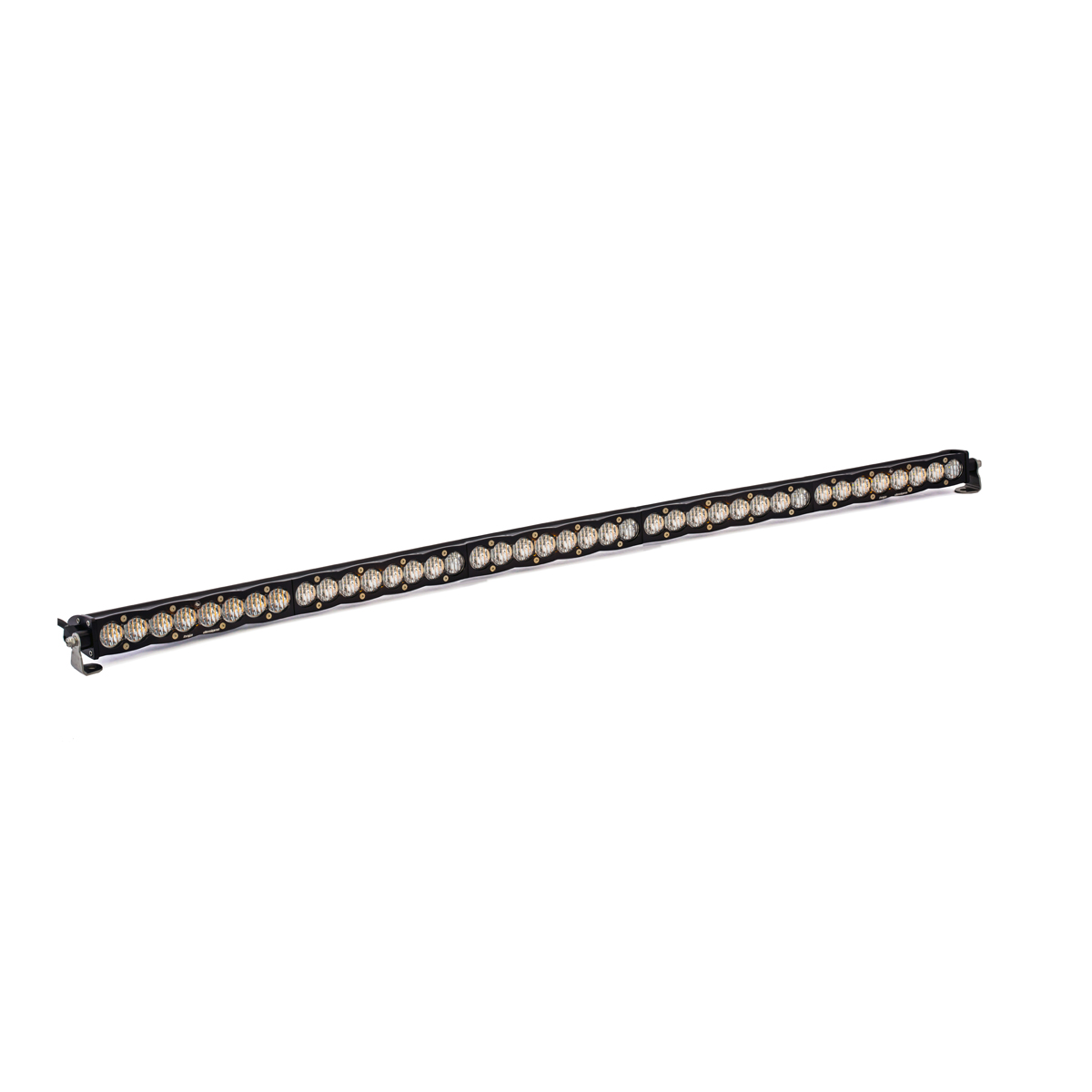

50″ Light Bar
Lumens: 31,640 Utilizing 40 Cree LEDs
Wattage/Amps: 280W/20.29A
Dimensions/Weight: 50″ x 3″ x 1.6″/10.75 lbs



Will fit:

Baja Design’s latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame, and nearly 50,000 hours of LED life. The S8 also features upgraded reflectors, an amber backlit feature, and new scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!

Baja Designs Features:
  • Satisfactions Guarantee – 30 Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService® – Replaceable Lenses And Optics
  • ClearView® – All The Light, Right Where You Need It.
  • MoistureBlock™ – Waterproof, Rain Proof, Submersible
  • CopperDrive® – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • LED Life Expectancy: 49,930 Hours
  • Front Lens:  Hard Coated Polycarbonate
  • Housing:  Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
  • S8 LED Light Bar
  • Mounting Brackets

Please note that this light does NOT include a harness and the applicable harness to this light is 640115


Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)

Additional information


10", 20", 30", 40", 50"

Light Pattern

Spot, Driving/Combo, Work/Scene, Wide Driving, Amber Wide Driving, Amber Driving/Combo
